New Double Rack Drive Gabion Mesh Machine , Hexagonal Mesh Machine 4300mm Width
Features:
1. New type double rack drive gabion machine
2. High efficiency: theoretic output=255m/h
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6.Automatic oil system
7. It use seamless iron tube to increase inside diameter , make it put more spring wire so it can save the time of changing spring wire and improve output.
8. The design is innovation in China, it can weave 4.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.
Description:
The design is innovation in China, it can weave 4.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.
Jinlida series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.
We have 15 years export experience establishing trade with more than 30 countries, and ,
DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
You can watch mesh knitting video on Youtube:
https://youtu.be/HRg-T-DNPmw
Specifications:
| Double Rack Drive Heavy Duty Hexagonal Wire Netting Machine |
| Style | Mesh size(A) | Width | Wire diameter | Twisting Lines | Spindle Speed | Power of Motor |
| (mm) | (mm) | (mm) | r | (r/min) | (kw) |
| LNWL2-60-S | 60-70 | 2000 | 3.2 | 3 | 25 | 11 |
| LNWL2-80-S | 80-90 | 4 | 3 |
| LNWL2-100-S | 100 | 4.2 | 3 |
| LNWL3-60-S | 60-70 | 3000 | 3.2 | 3 | 25 | 15 |
| LNWL3-80-S | 80-90 | 4 | 3 |
| LNWL3-100-S | 100 | 4.2 | 3 |
| LNWL4-60-S | 60-70 | 4000 | 3.2 | 3 | 25 | 22 |
| LNWL4-80-S | 80-90 | 4 | 3 |
| LNWL4-100-S | 100 | 4.2 | 3 |
| Remark |
|
Pic 1 Machines are fixed in the container as below picture

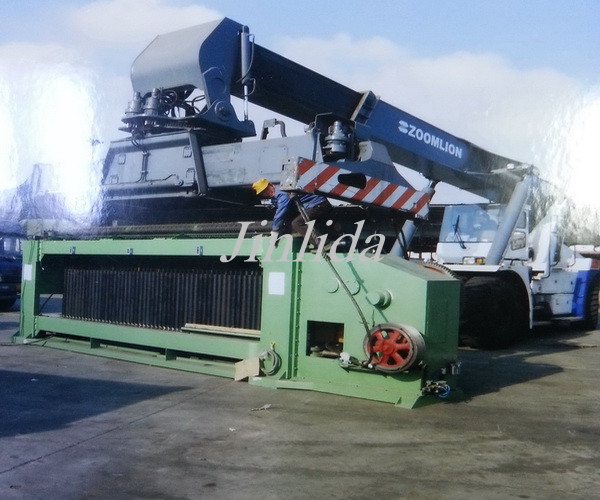

Pic 2 Gabion Machine Was Unloaded in Foreign Country
Competitive Advantages:
1. We are first factory to produce double rack drive machine in China, and the machine can meet the big diameter wire like 4.0mm, make gabion box more firmly.
2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
